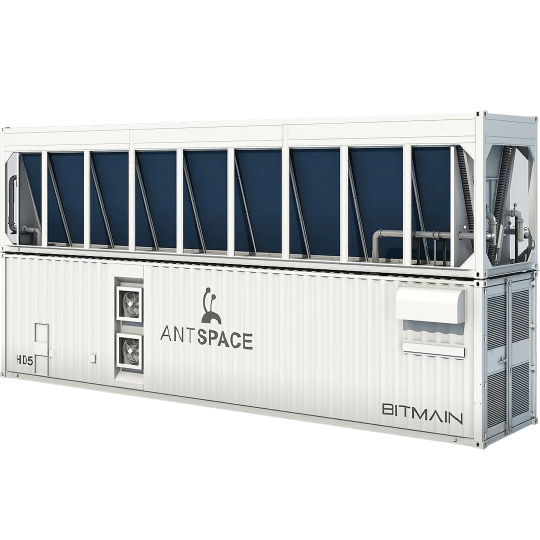

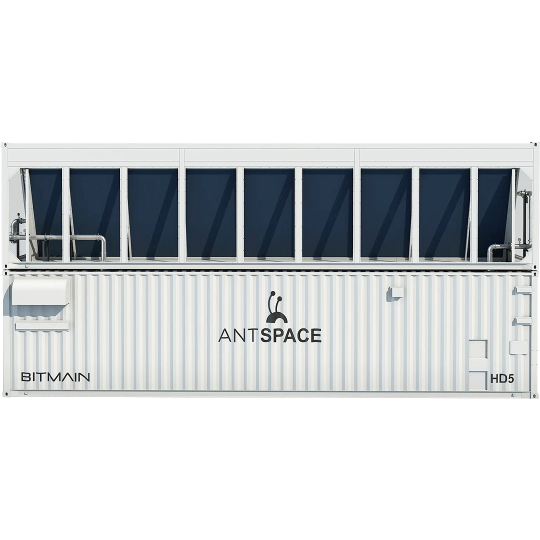

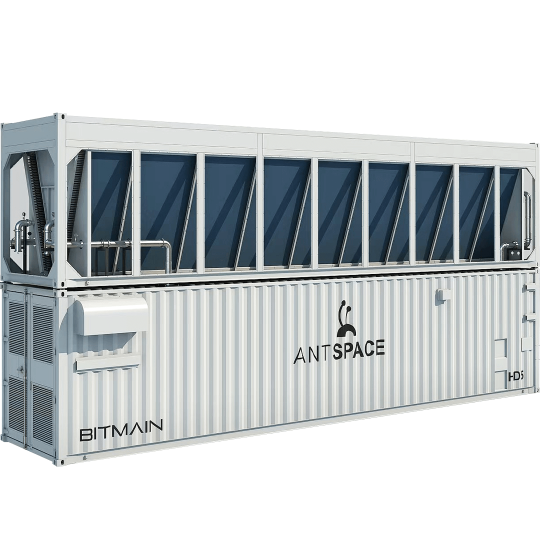

Name: Bitmain ANTSPACE HD5 In HK Stock
Brand: Bitmain Antminer
SKU: 5577
Price: 14200.00 CAD
Availability: InStock

Bitmain ANTSPACE HD5 In HK Stock

CAD $14,200.00

Due to significant market fluctuations, please contact us to confirm the price before placing an order, or we may need to cancel your order. SHIPPING IS NOT INCLUDED.

Manufacturer	ANTSPACE HD5
Size	12192 x 2438 x 2896mm
Miner Capacity	308 units –S23 Hyd. & S21 Hyd. & S19 Hyd. Series miner
PUE@25 ˚C ambient temperature	1.021
Container Certification	CSC
Safety Certification	NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 ANSI/ISO 12100:2012 IEC 60204 Ed 5.1 2009
Input Voltage and Frequency	400V±5%, 50/60Hz

Shipping weight, T	11
Operating weight, T	18
Main switch of power distribution cabinets, A	1200×4
Rated current, A	700×4
Normal power, kW	1512
Maximum power, kW	1765
Rated current per Miner, A	10
Inlet cable^(1-1)	The inlet copper cables can withstand voltage of above 600V, with the following requirements: L1 single core cable 400kcMil (185mm²)x8 L2 single core cable 400kcMil (185mm²)x8 L3 single core cable 400kcMil (185mm²)x8 N Single-core cable 400kcMil (185mm²)x4 PE single-core cable 400kcMil (185mm²)x4
Connection interface (Dry Cooling tower)	DN100（ISO2852 PN16）
Connection interface (Plate heat exchange interface)	DN100（GB/T 9122-2010 PN16）
Flow rate 1^(1-2), m³/h	67.2
Flow rate 2^(1-3), m³/h	73.9
Quantity of ANTSPACE powered by one 3750kVA Transformer	2

Specification Details For Dry Cooling Tower	2000 x 1130 x 2360 mm
Model	EC2-DT Dry Cooler（Container Type）
Size	12192 x 2438 x 2896mm
Shipping Weight, T	12
Operating Weight, T	14
Heat Dissipation Capacity, kW	1500
Container Certification	CSC
Safety Certification	NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 IEC 60204 Ed 5.1 2009
Input Voltage and Frequency	400V±5%, 50/60Hz
Operationg Power, kW	≤80
Connection interface (Container)	DN100（ISO2852 PN16）
Connection Interface (Drain Pipe)	DN25（Tapered tube）
Noise	72db
Coolant Usage, m³	2.1
