Description
| Specifications
| Product Glance | |

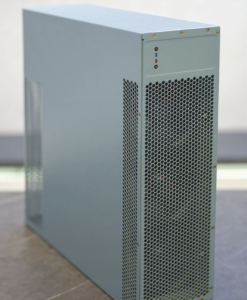

| Model | KA3 |
| Algorithm | Cryptocurrency | Blake2S | KDA |
| Hashrate, TH/s | 166 ±3% |
| Power on wall @25°C, Watt | 3154 ±10% |
| Power efficiency on wall @25°C, J/T | 19.0 ±10% |
| Detailed Characteristics | |
| Power Supply | |
| Power supply AC Input voltage, Volt(1-1) | 200~240 |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(1-2) | 20 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package),mm(2-1) | 430*195.5*290 |
| Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
| Net weight, kg(2-2) | 16.1 |
| Gross weight, kg | 17.7 |
| Environment Requirements | |
| Operation temperature,°C | 0~40 |
| Storage temperature,°C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
| Operation altitude, m(3-1) | ≤2000 |
NOTE:
1.If the user fails to use the product in accordance with the given instructions, specifications, and conditions provided, or change the function setting without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
(1-1) Caution: Wrong input voltage may probably cause miner damaged
(1-2）Max condition: temperature 40°C, altitude 0m
(2-1）Including PSU size
(2-2) Including PSU weight
(3-1)When the miner is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
